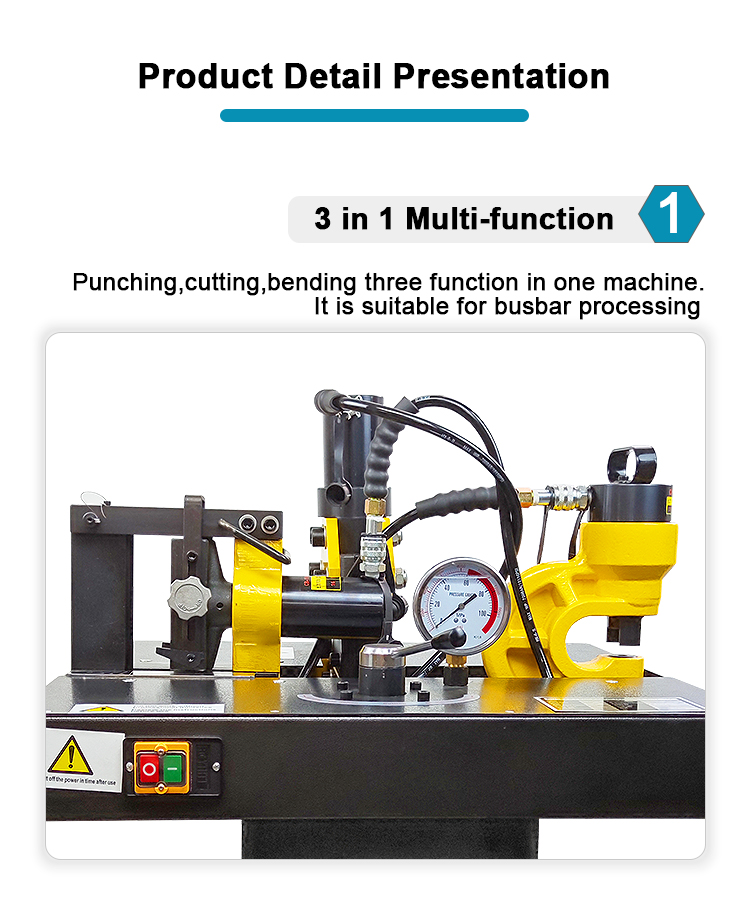

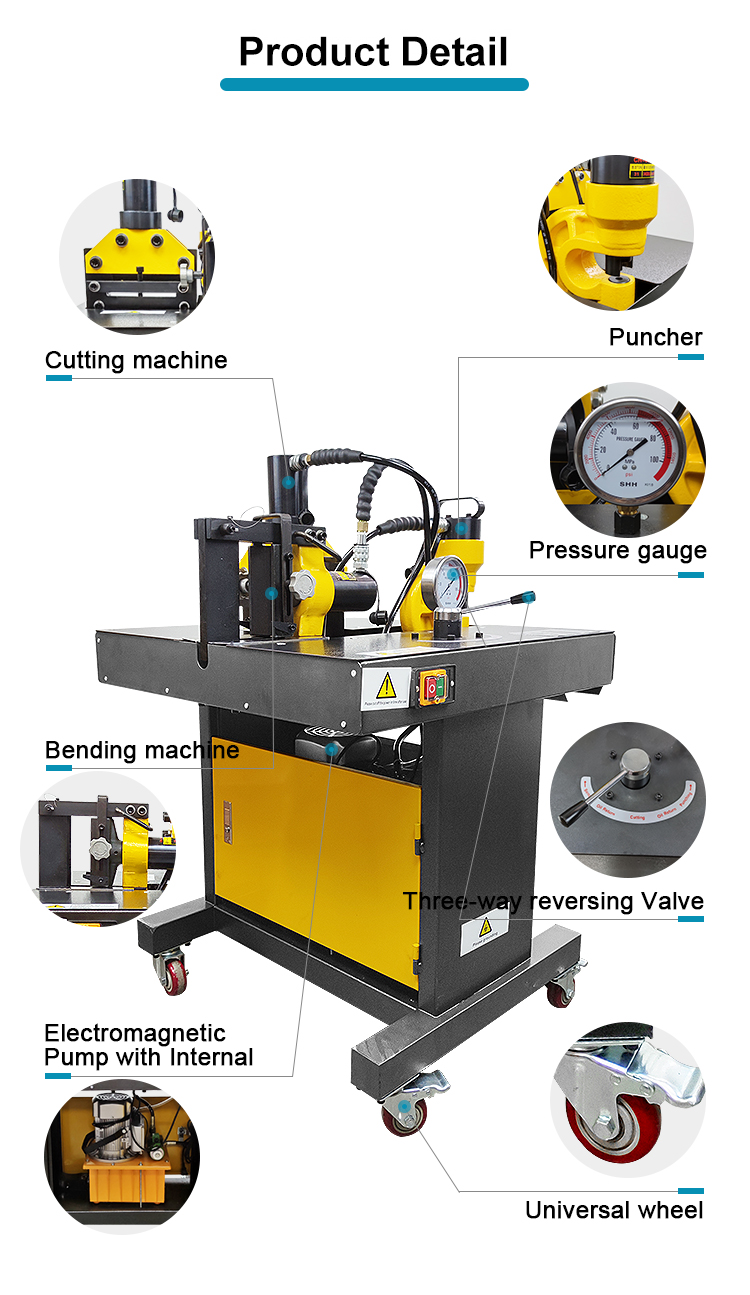

1.3 in 1 Multi-function Punching,cutting,bending three function in one machine.It is suitable for busbar processing

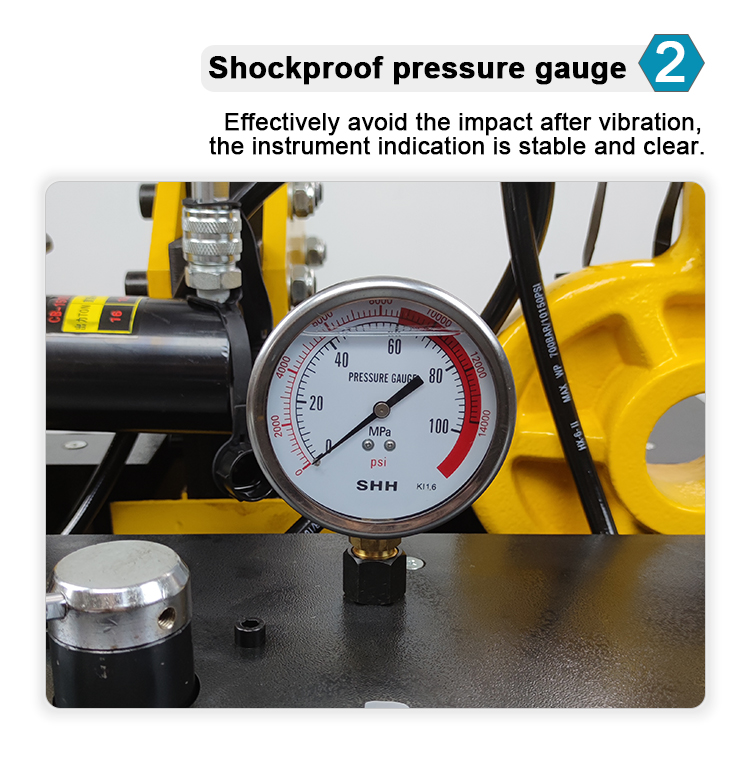

2.Shockproof pressure gauge Effectively avoid the impact after vibration,the instrument indication is stable and clear

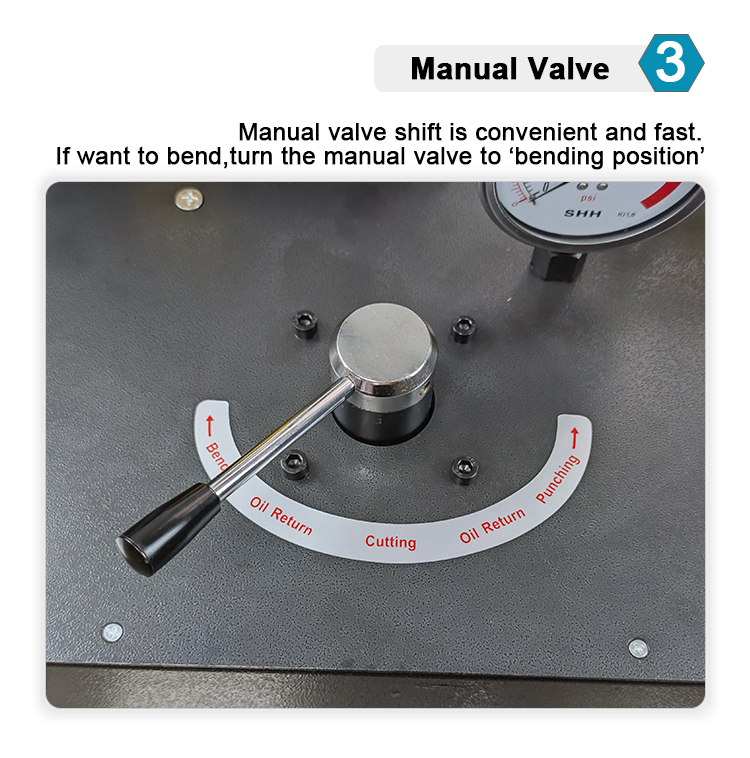

3.Manual valve shift is convenient and fast want to bend,turn the manual valve to 'bending position

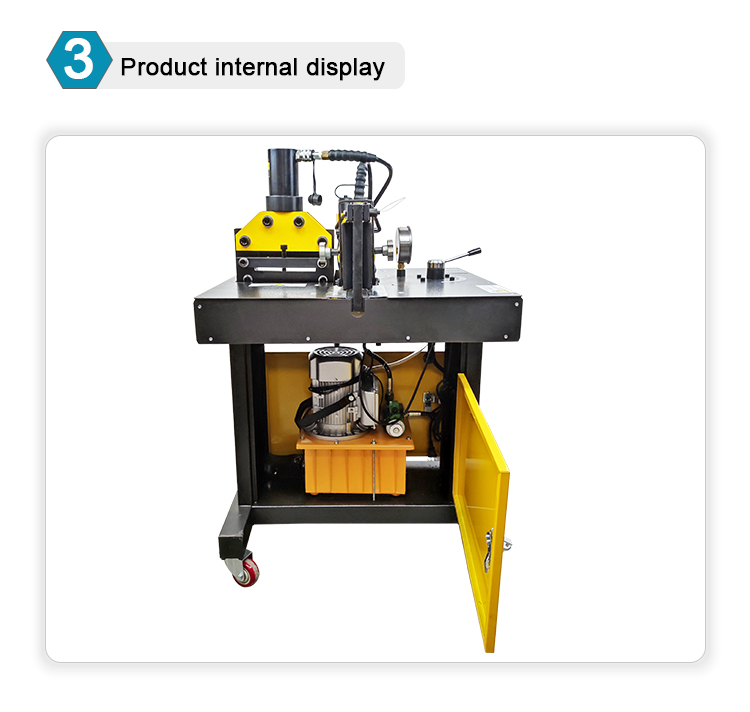

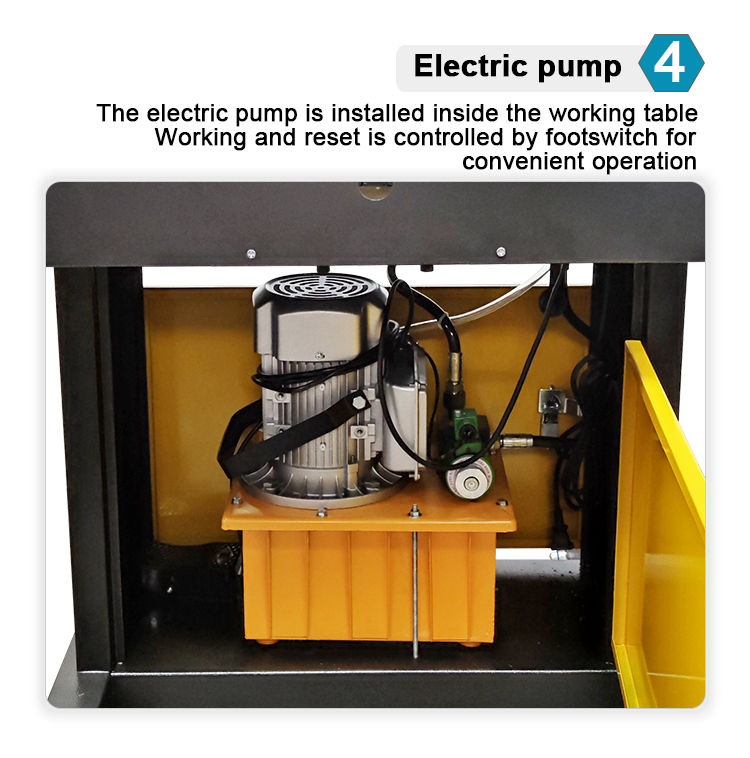

4.The electric pump is installed inside the working table Working and reset is controlled by foot switch for convenient operation

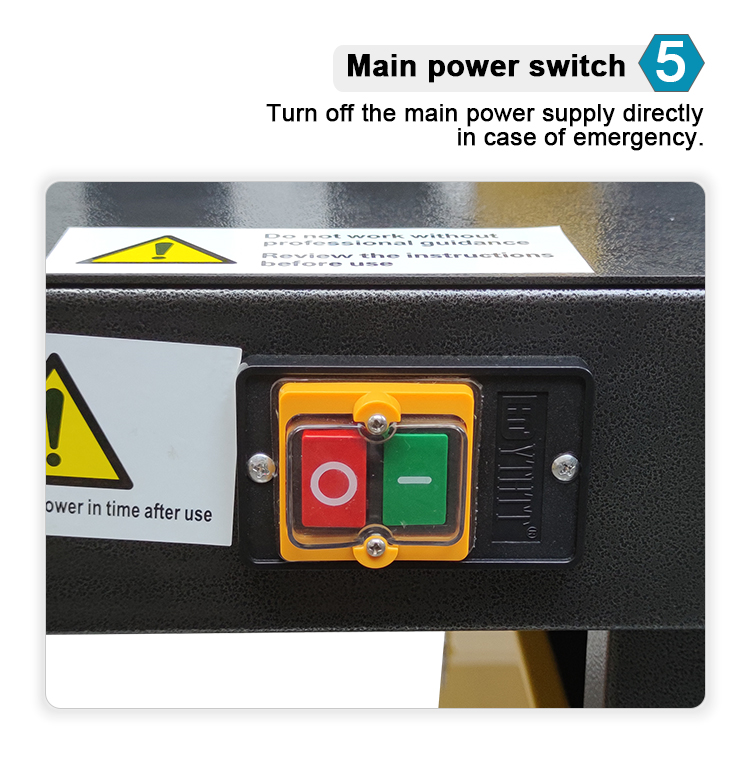

5.Main power switch Turn off the main power supply directly in case of emergency

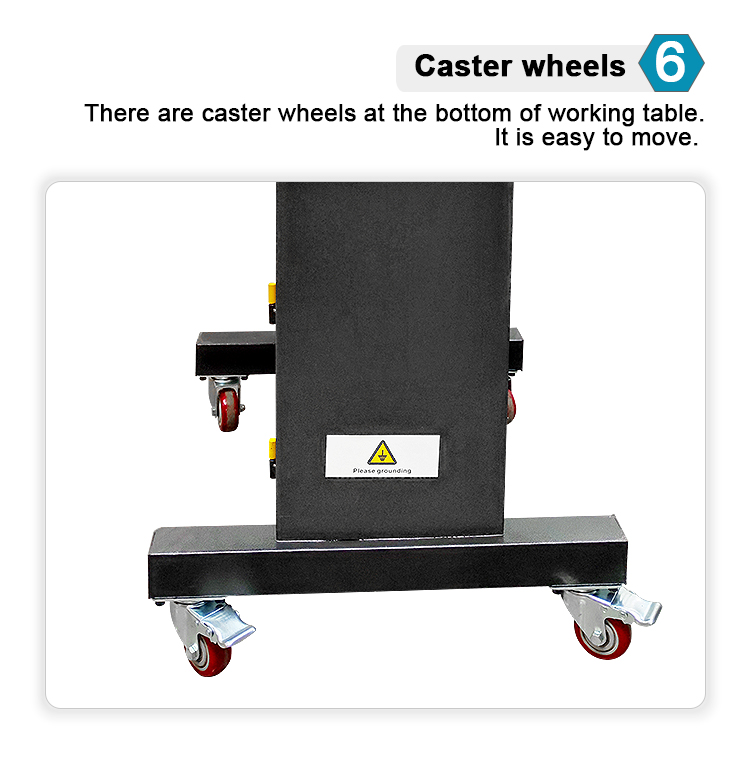

6.Caster wheels There are caster wheels at the bottom of working table.It is easy to move

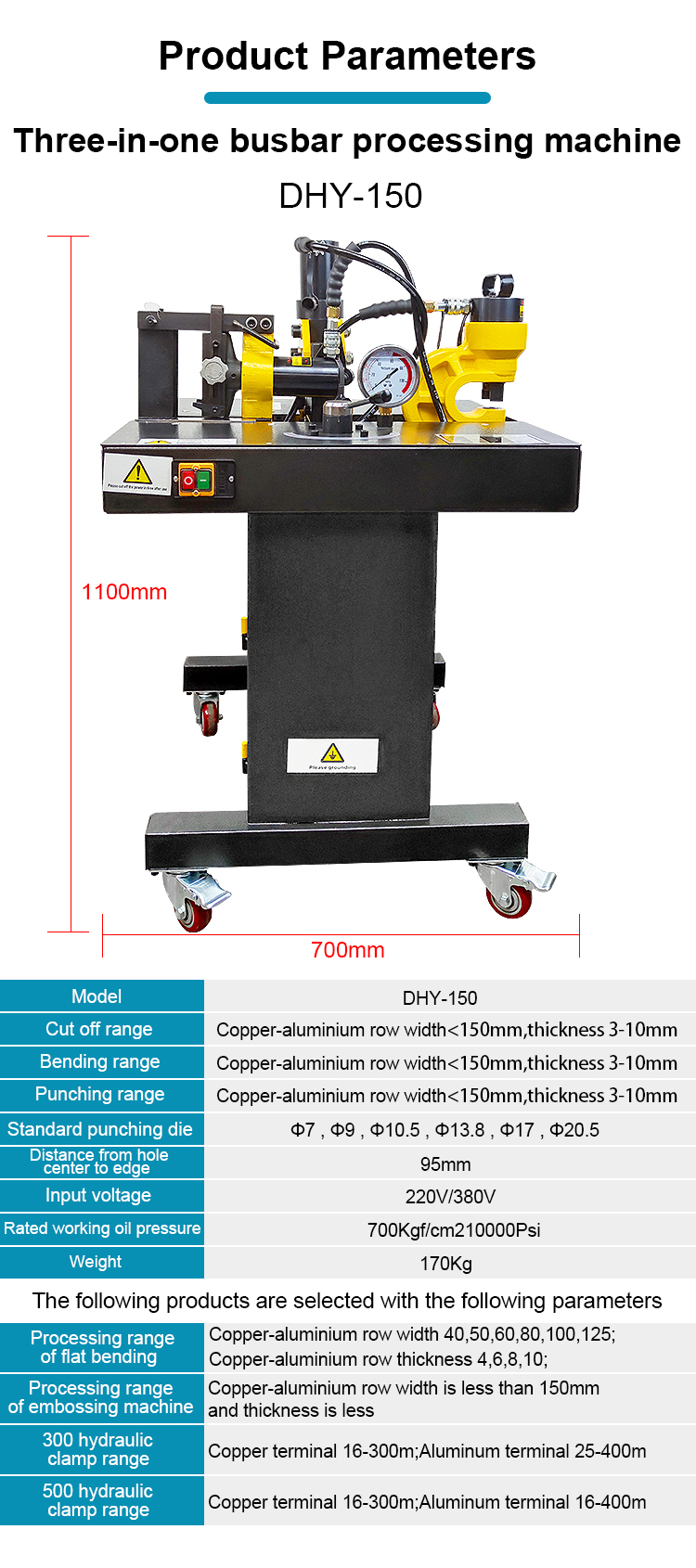

Model	DHY-150
Cut off range	Copper-aluminium row width<150mm,thickness 3-10mm
Bending range	Copper-aluminium row width<150mm,thickness 3-10mm
Punching range	Copper-aluminium row width<150mm,thickness 3-10mm
Standard punching die	φ7,φ9,φ105,φ13.8,φ17,φ20.5
Distance from hole center to edge	95mm
Input voltage	220V/380V
Rated working oil pressure	700Kgf/cm210000Psi
Weight	170Kg
The following products are selected with the following parameters
Processing range of flat bending	Copper-aluminium row width 40,50,60,80,100,125; Copper-aluminium row thickness 4,6,8,10;
Processing range of embossing machine	Copper-aluminium row width is less than 150mm and thickness is less
300 hydraulic clamp range	Copper terminal 16-300m;Aluminum terminal 25-400m
500 hydraulic clamp range	Copper terminal 16-300m;Aluminum terminal 16-400m
