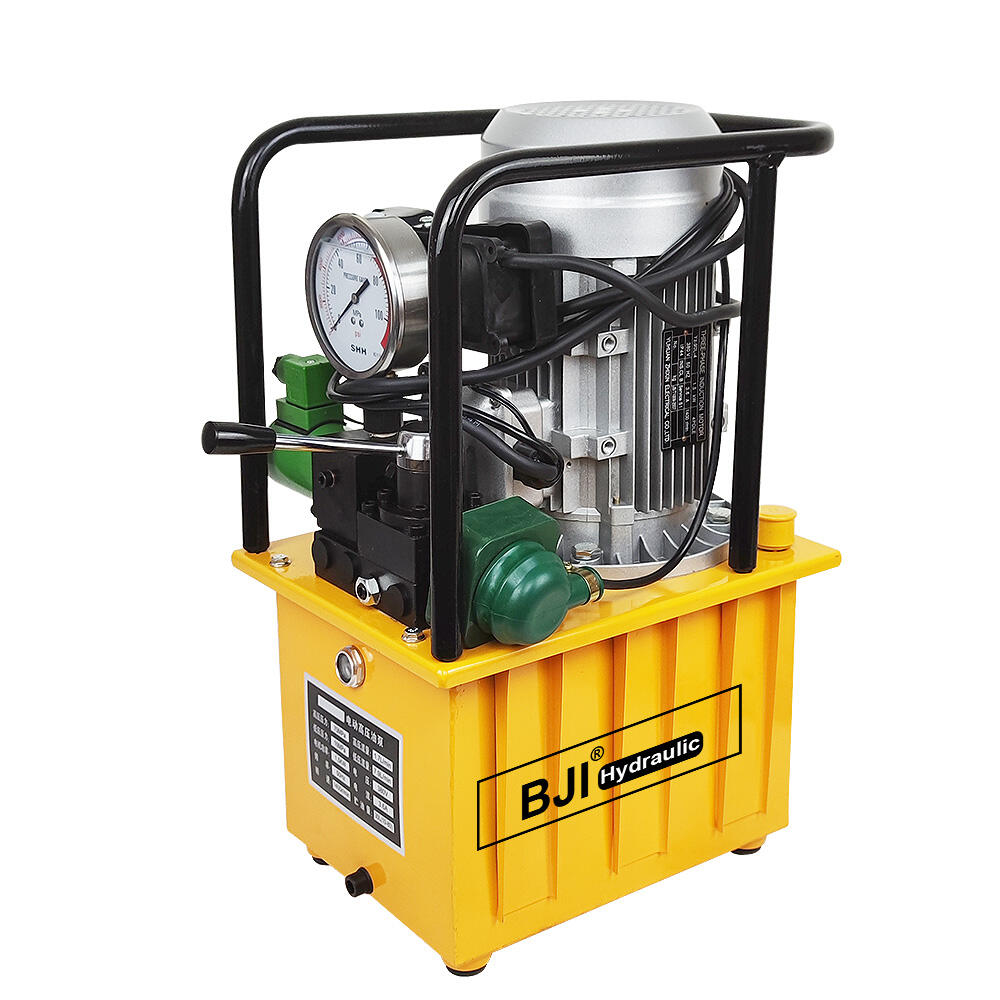

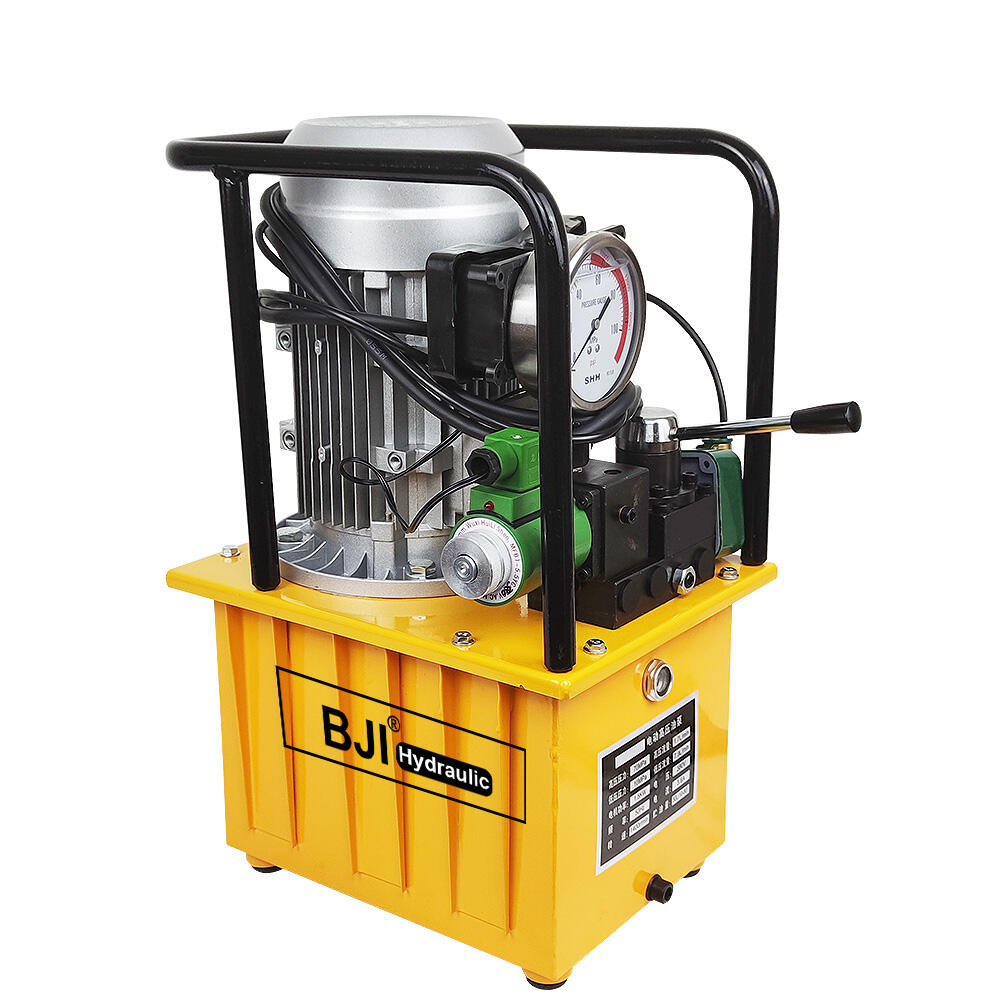

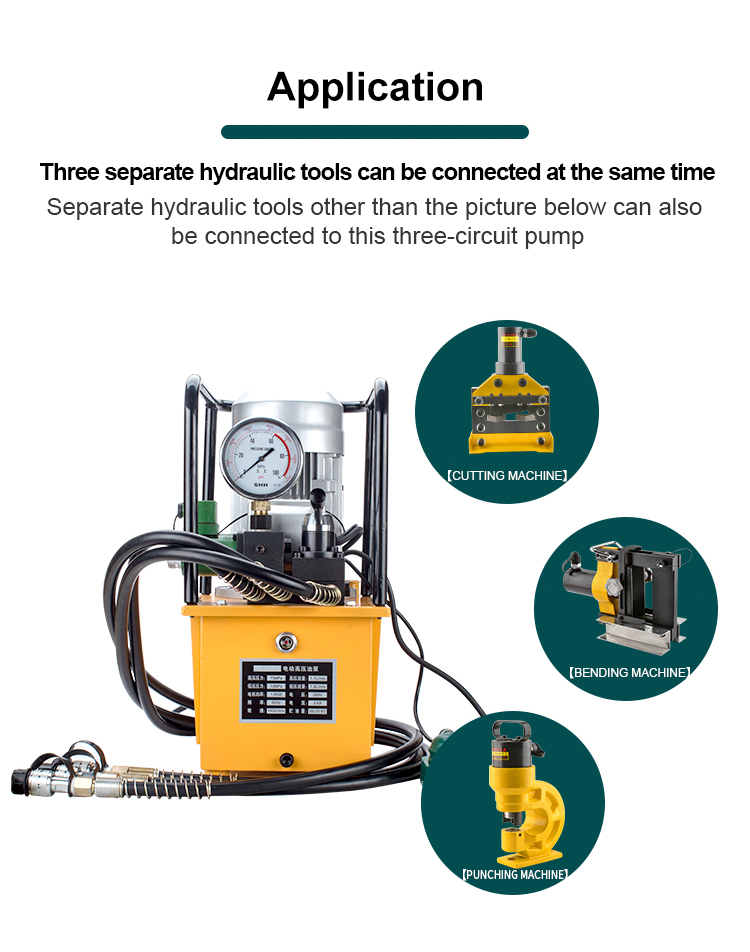

DB150-D3 High Pressure 700 bar Three Way Power Pack Electric Pumps Price

  • Introduction
  • Description
  • Specifications
Introduction

Motor Power:

1.5KW

Oil Reserves:

10L

Model Number:

DB150-D3

Working Voltage:

220V/380V(Can be customized)



3.产品商务条款

Minimum Order Quantity:

1 set

Price:

US$275.00

Packaging Details:

Wooden box

Delivery Time:

3 day

Payment Terms:

customizable

Supply Ability:

Available

Description

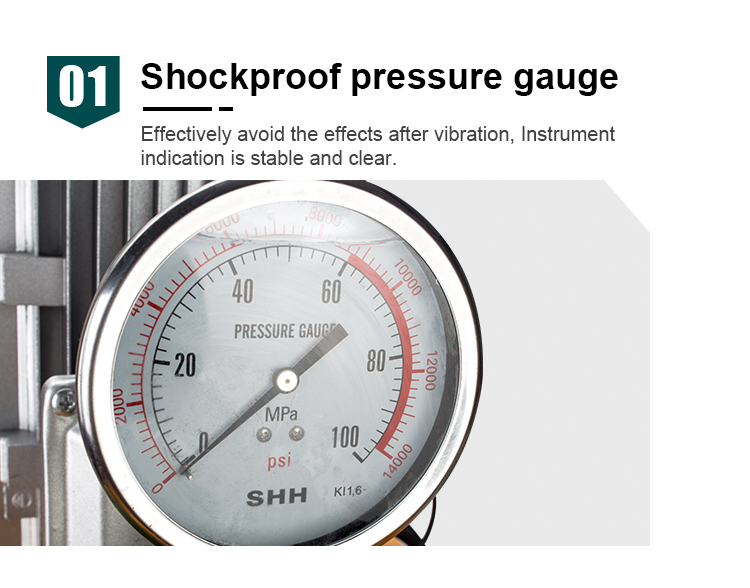

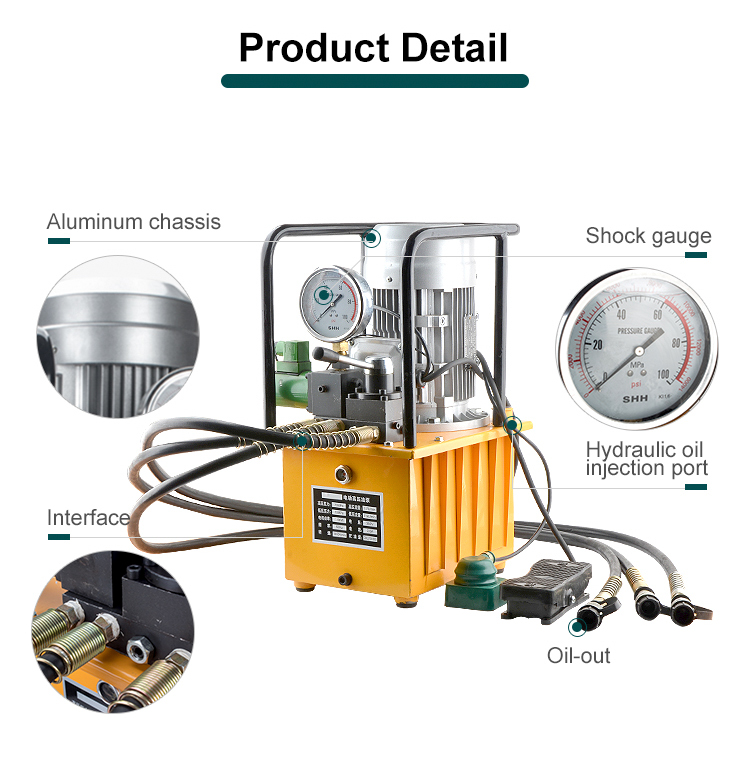

  1. Shockproof pressure gauge Effectively avoid the effects after vibration, Instrument indication is stable and clear

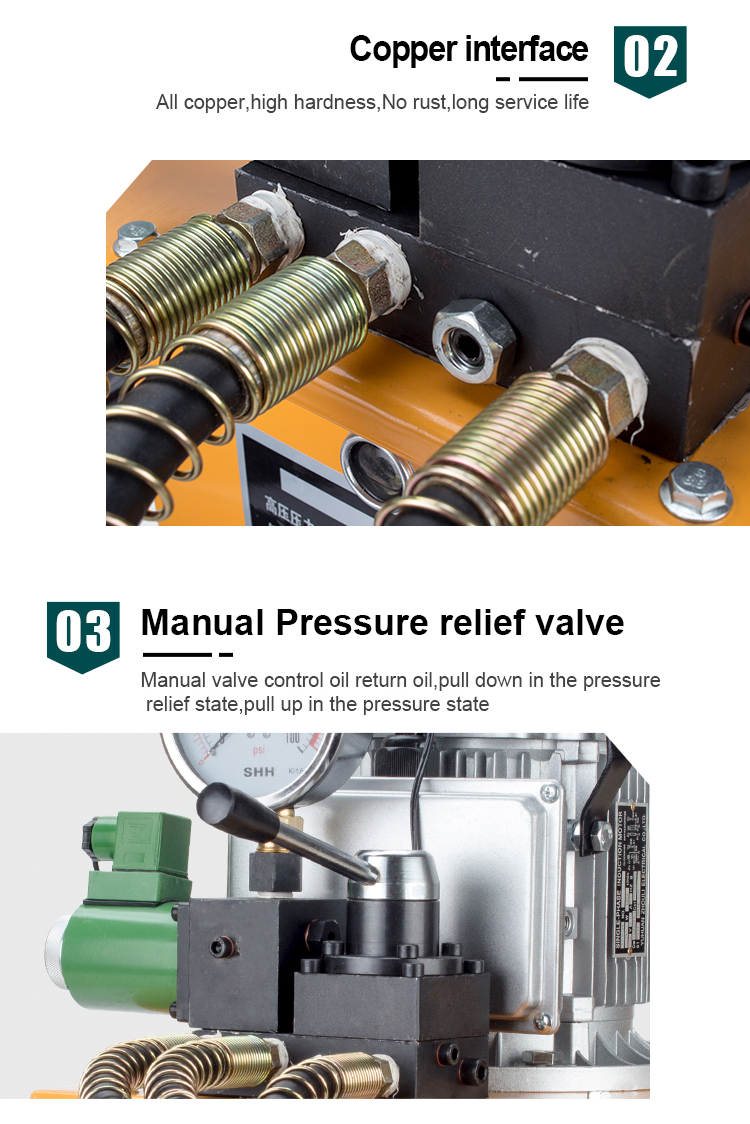

  2. Copper interface All copper,high hardness,No rust,long service life
  3. ManualPressure relief valve Manual valve control oil return oil,pull down in the pressure relief state,pull up in the pressure state

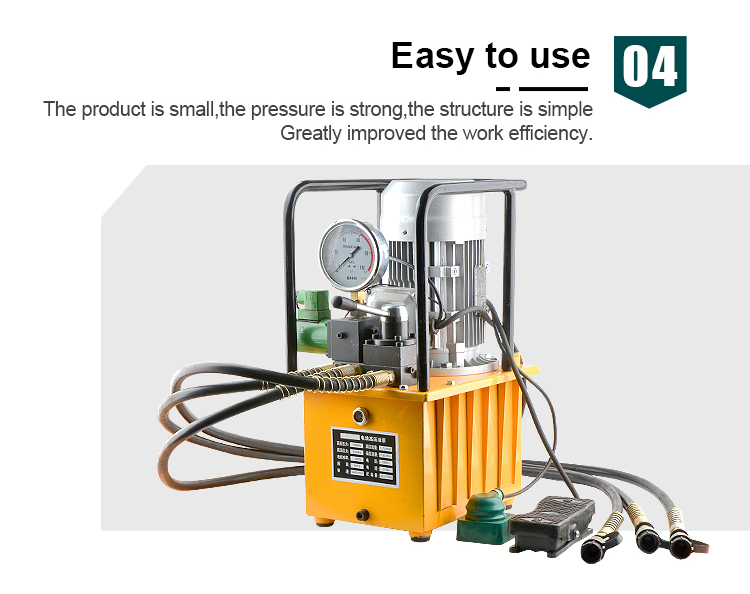

  4. Easy to use The product is small,the pressure is strong,the structure is simple Greatly improved the work efficiency

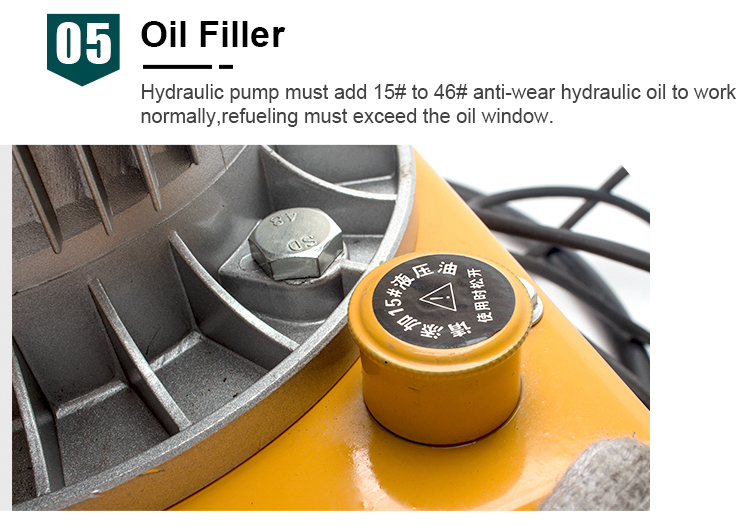

  5. Oil Filler Hydraulic pump must add 15# to 46# anti-wear hydraulic oil to work normally,refueling must exceed the oil window.

Specifications

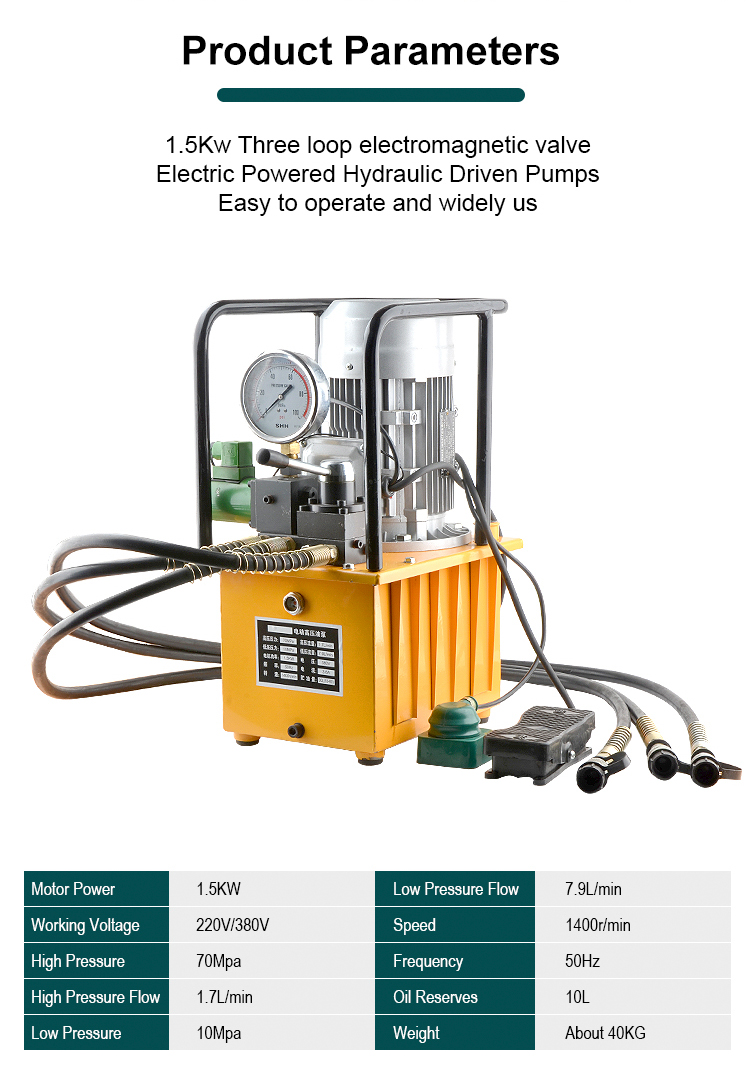

Motor Power 1.5KW Low Pressure Flow 7.9L/min
Working Voltage 220V/380V Speed 1400r/min
High Pressure 70Mpa Frequency 50Hz
High Pressure Flow 1.7L/min Oil Reserves 10L
Low Pressure 10Mpa Weight About 40KG
