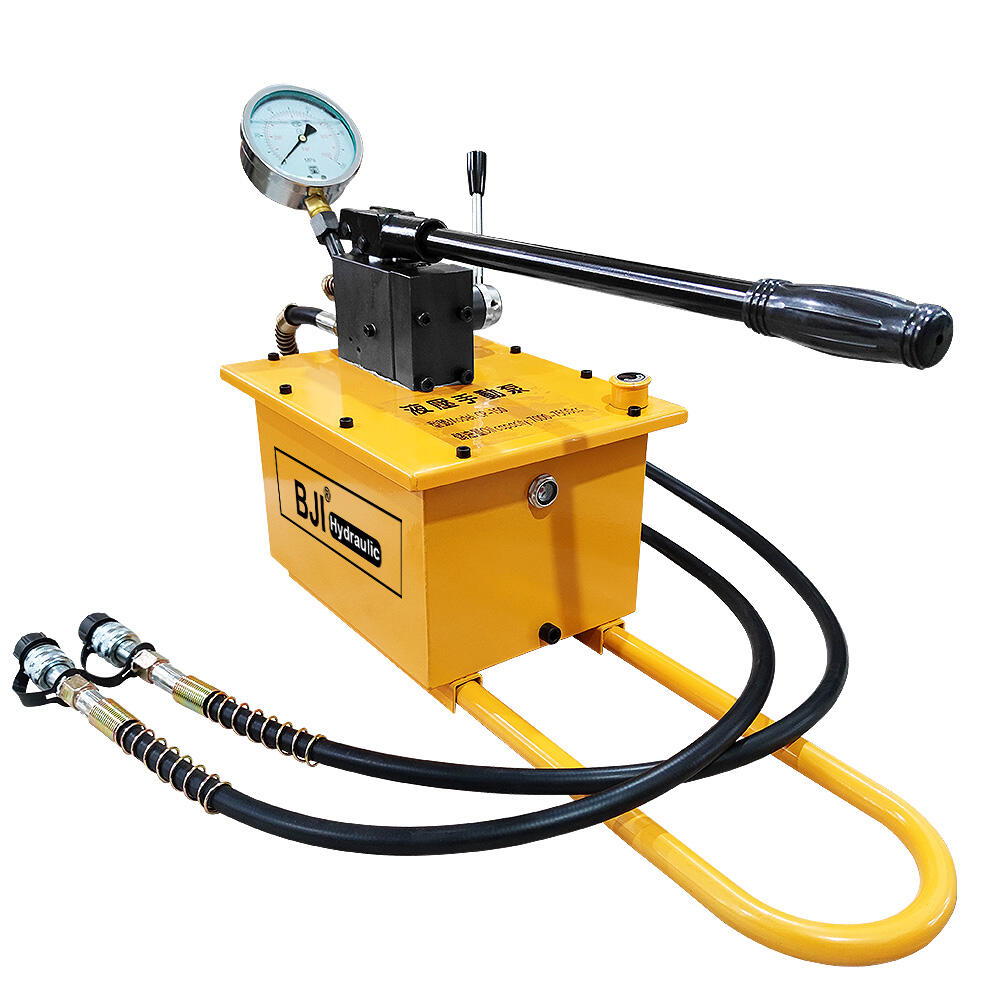

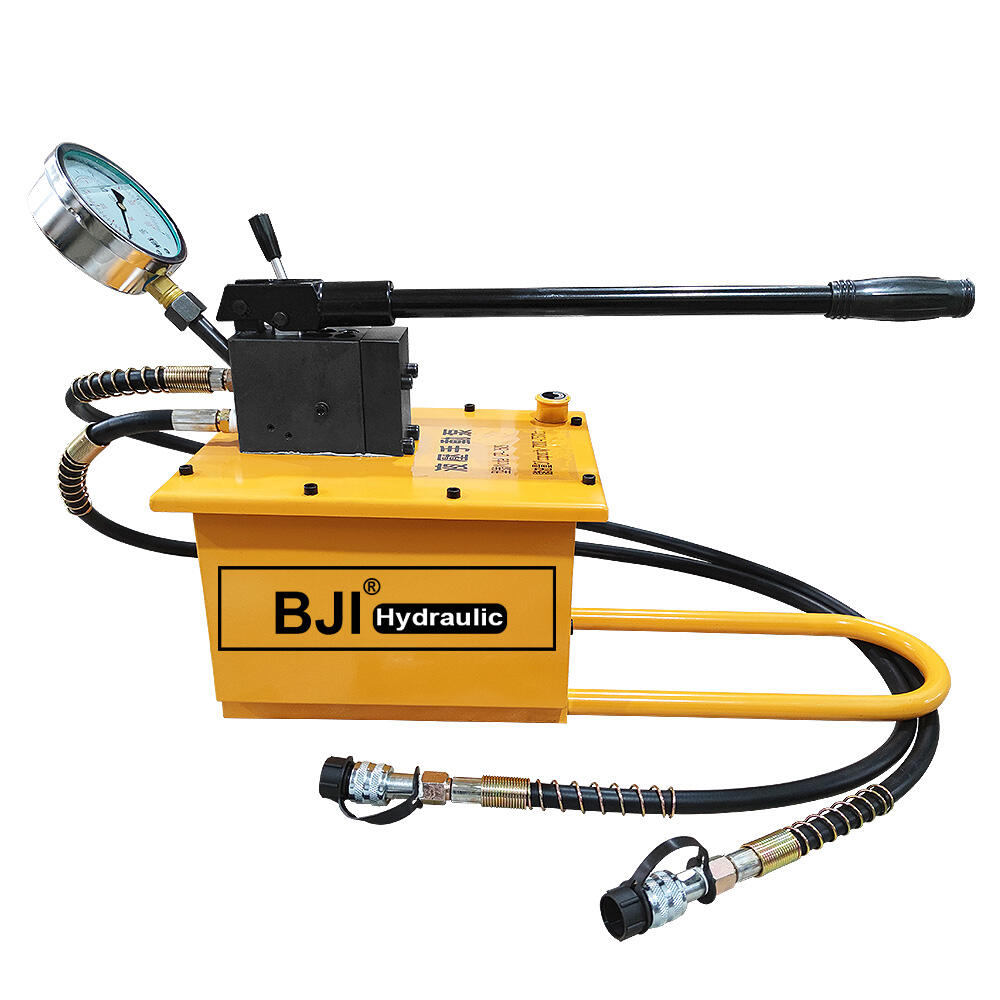

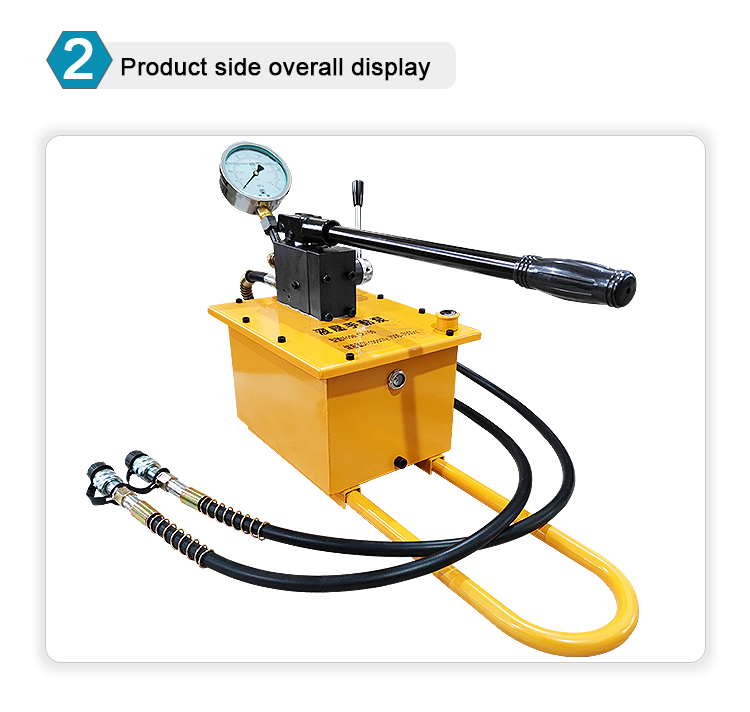

CP-150 Double-Action Hydraulic Hand Pump for Industrial Use

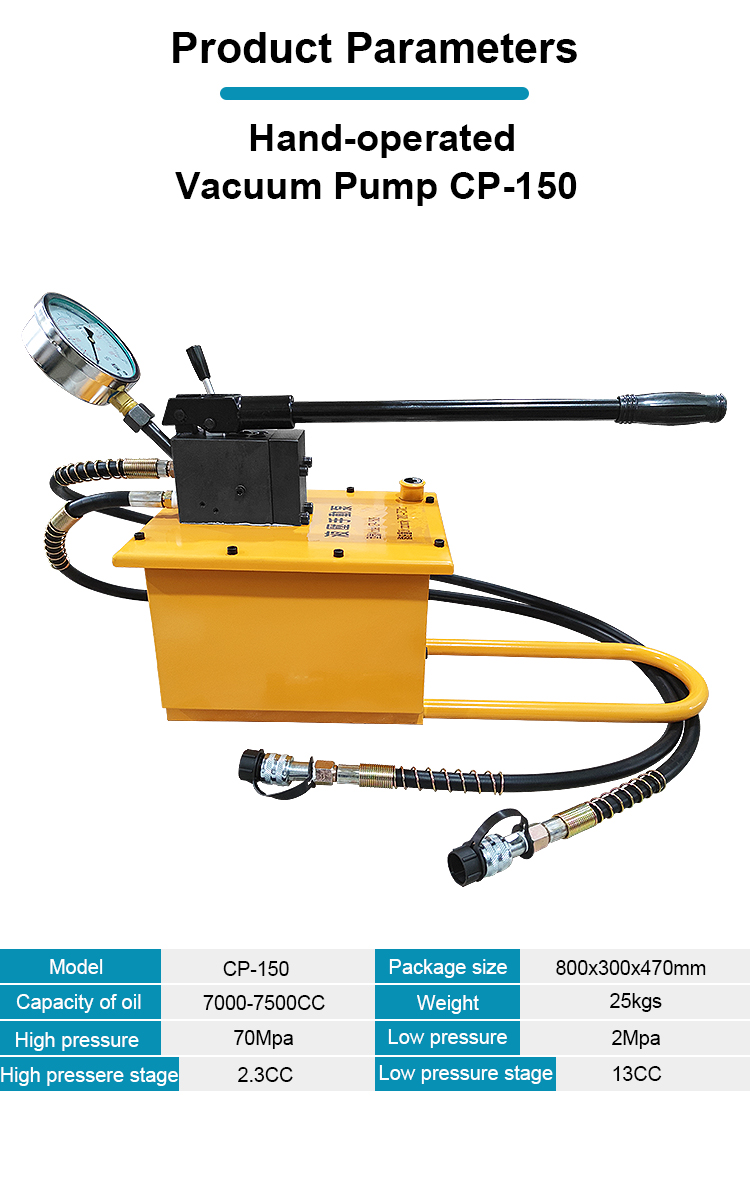

Max output pressure:	High pressure:70Mpa Low pressure:2Mpa
Output of oil:	High pressure stage:2.3CC Low pressure stage: 13CC
Model Number:	CP-150
Capacity of oil:	7L

cp 150 double action hydraulic hand pump for industrial use-1

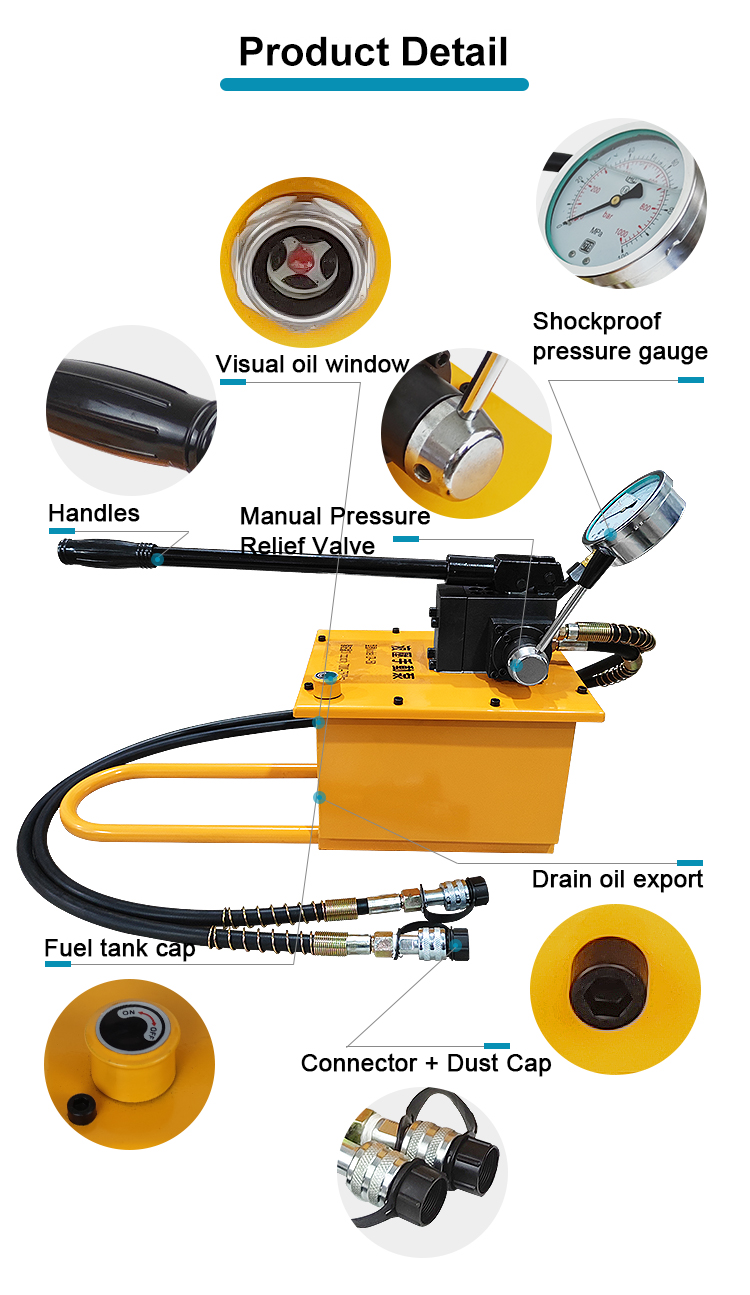

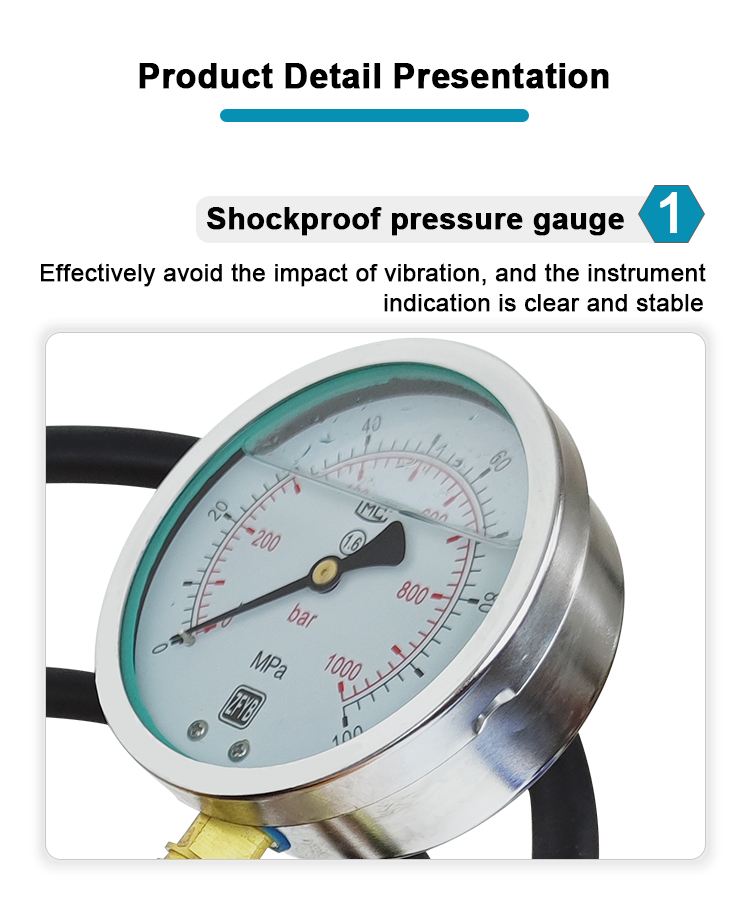

Shockproof pressure gauge Effectively avoid the impact of vibration, and the instrument indication is clear and stable

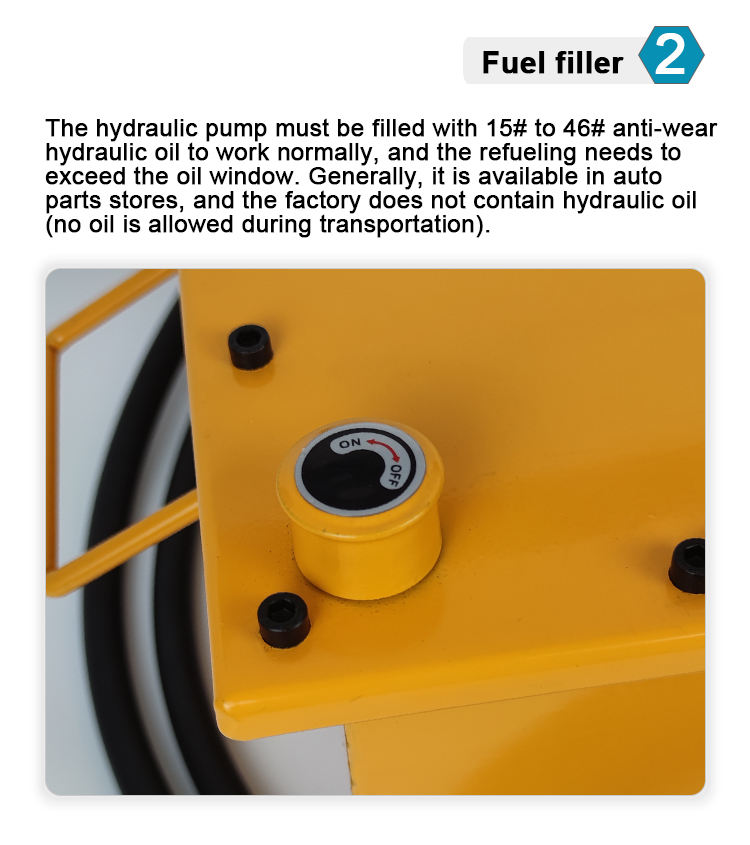

Fuel filler The hydraulic pump must be filled with 15# to 46# anti-wear hydraulic oil to work normally, and the refueling needs to exceed the oil window.Generally, it is available in auto parts stores, and the factory does not contain hydraulic oil(no oil is allowed during transportation).

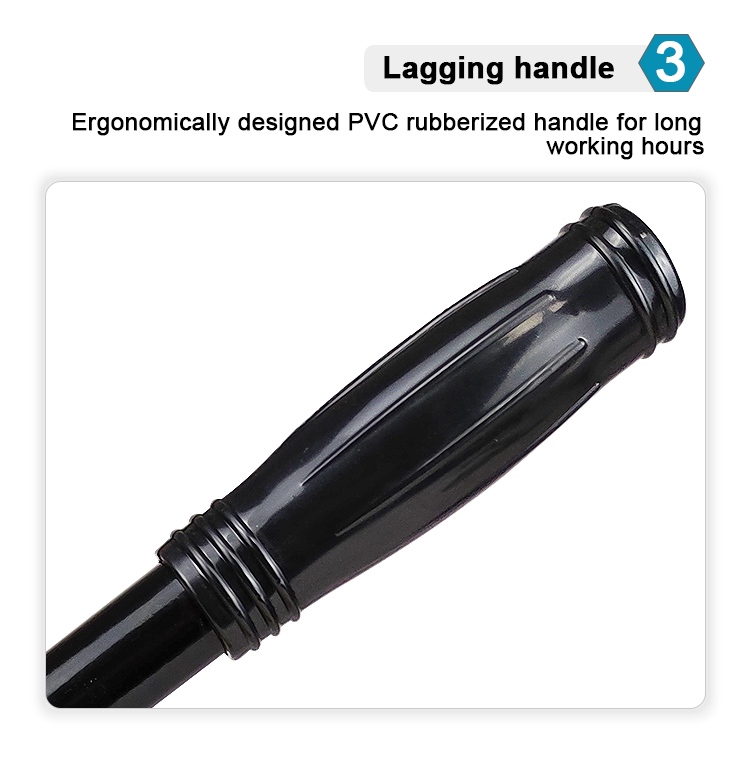

Lagging handle Ergonomically designed PVC rubberized handle for long working hours

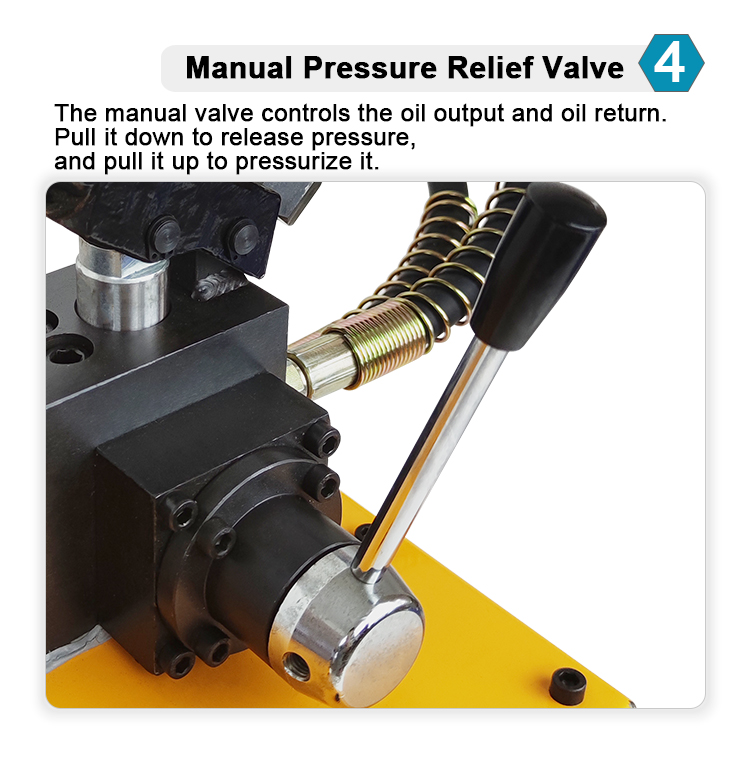

Manual Pressure Relief Valve The manual valve controls the oil output and oil return.Pull it down to release pressure,and pull it up to pressurize it.

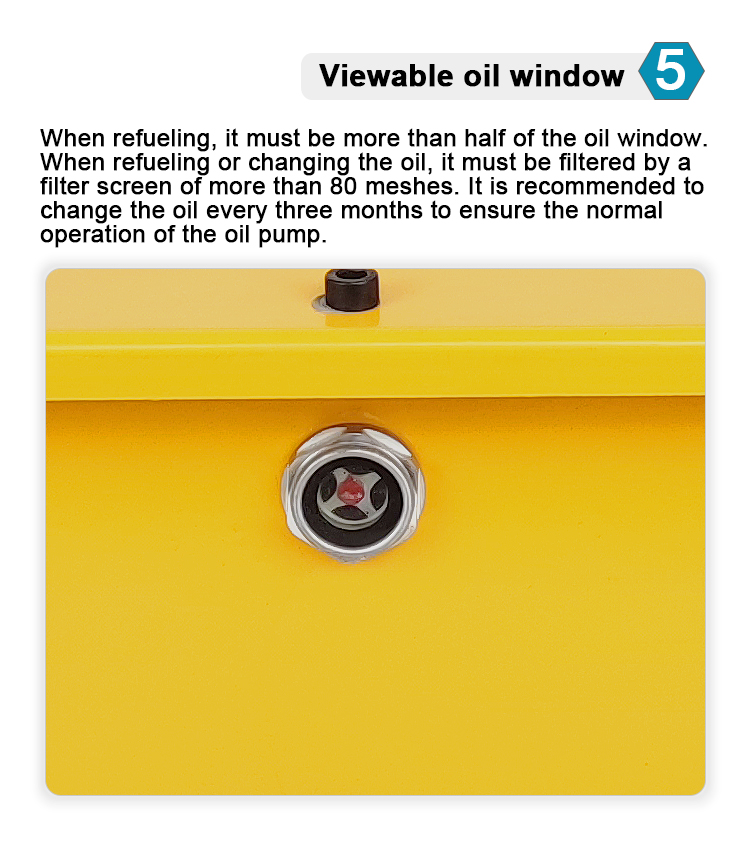

Viewable oil window When refueling, it must be more than half of the oil window.When refueling or changing the oil, it must be filtered by a filter screen of more than 80 meshes.lt is recommended to change the oil every three months to ensure the normal operation of the oil pump.
