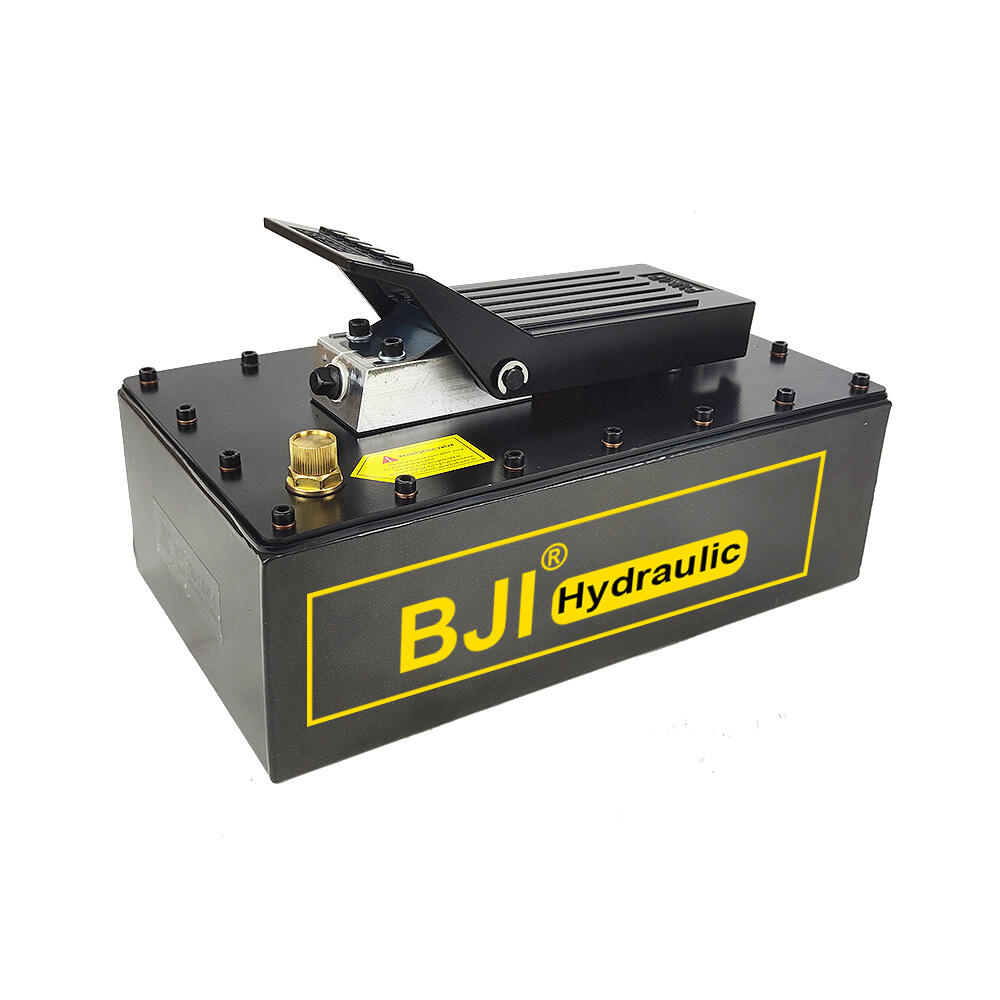

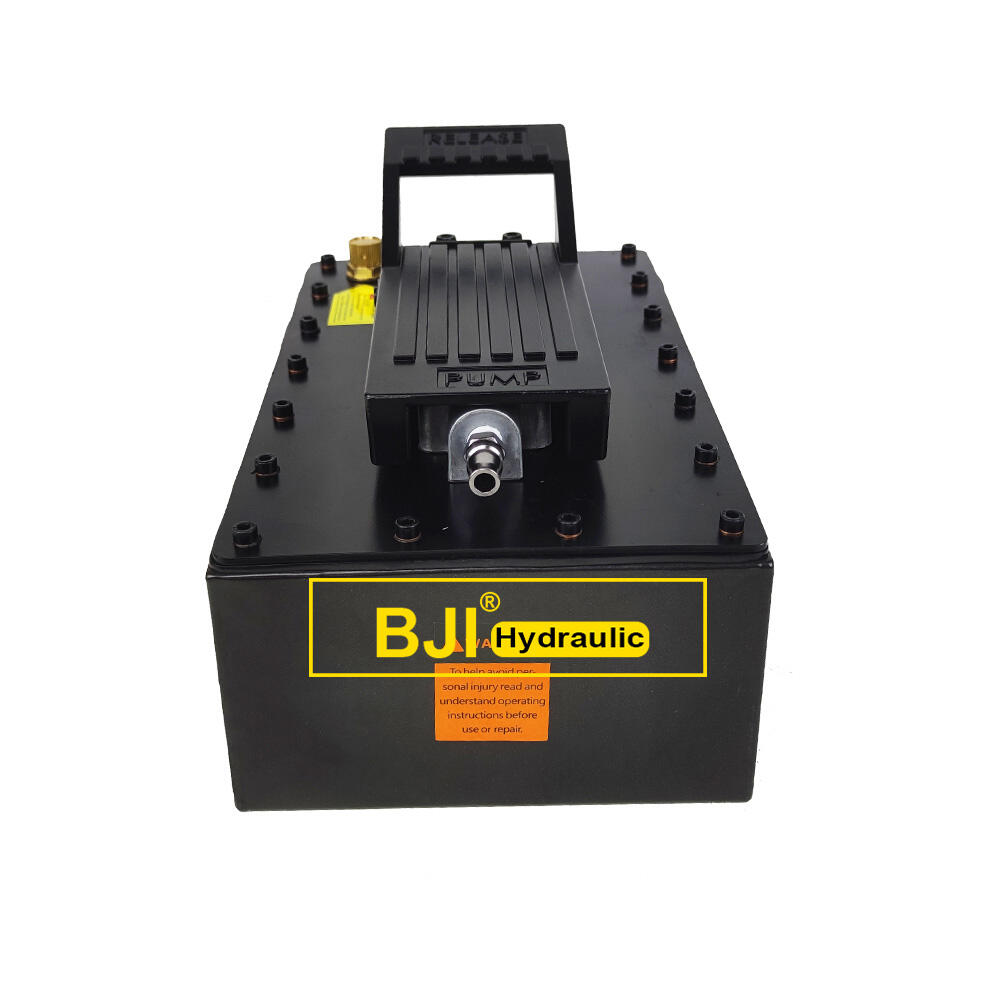

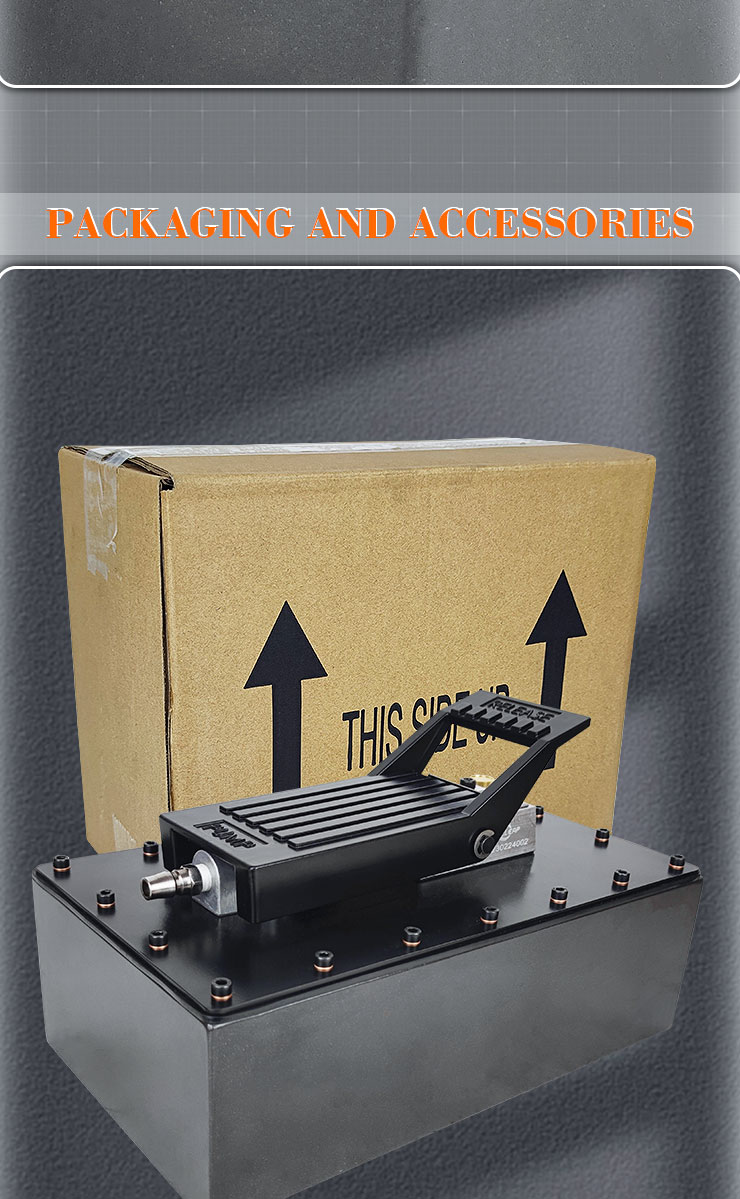

BQ-DA6 Hydraulic Air Pump Pneumatic Foot Pedal with 70 MPa Pressure for Single Acting Cylinder
|
Outlet Size: |
3/8 NPT |
|
Reservoir capacity: |
3.8 L |
|
Model Number: |
BQ-DA6 |
|
ir pressure (input): |
0.27~0.84 mPa |
|
Minimum Order Quantity: |
1 set |
|
Price: |
US$136.00 |
|
Packaging Details: |
Paper box |
|
Delivery Time: |
≥3 day |
|
Payment Terms: |
customizable |
|
Supply Ability: |
Available |
- Overview
- Description
- Specifications
- Recommended Products

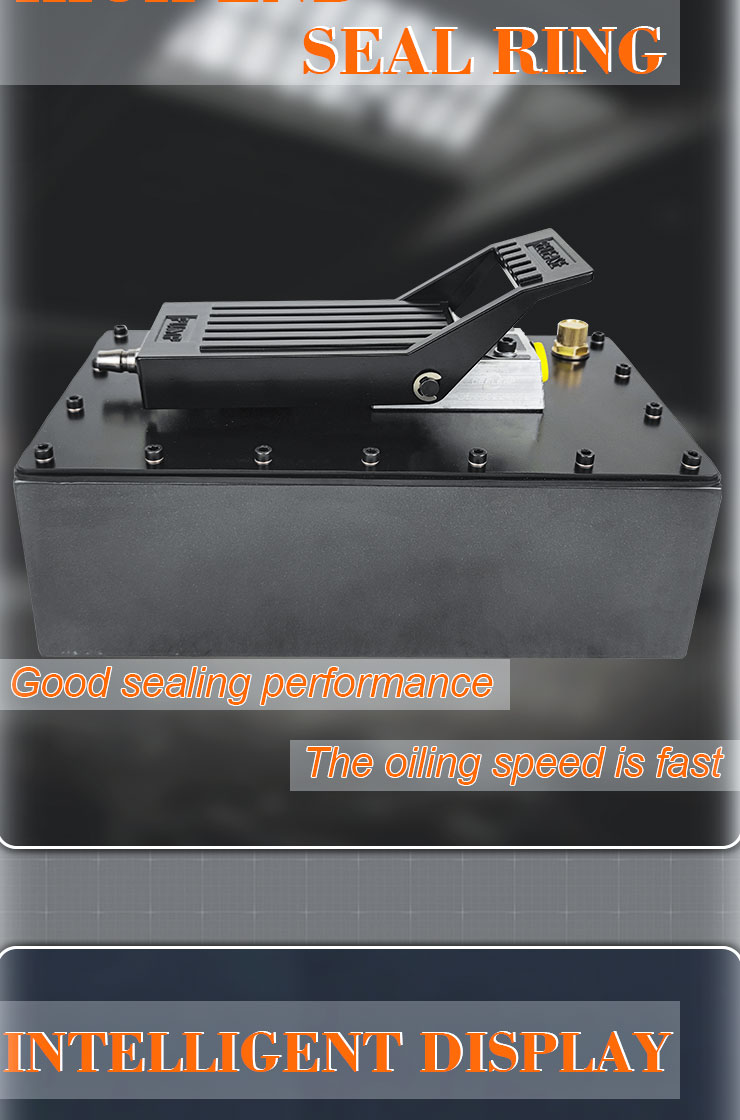

- HIGH END SEAL RING Good sealing penormance The oiling speed is fast

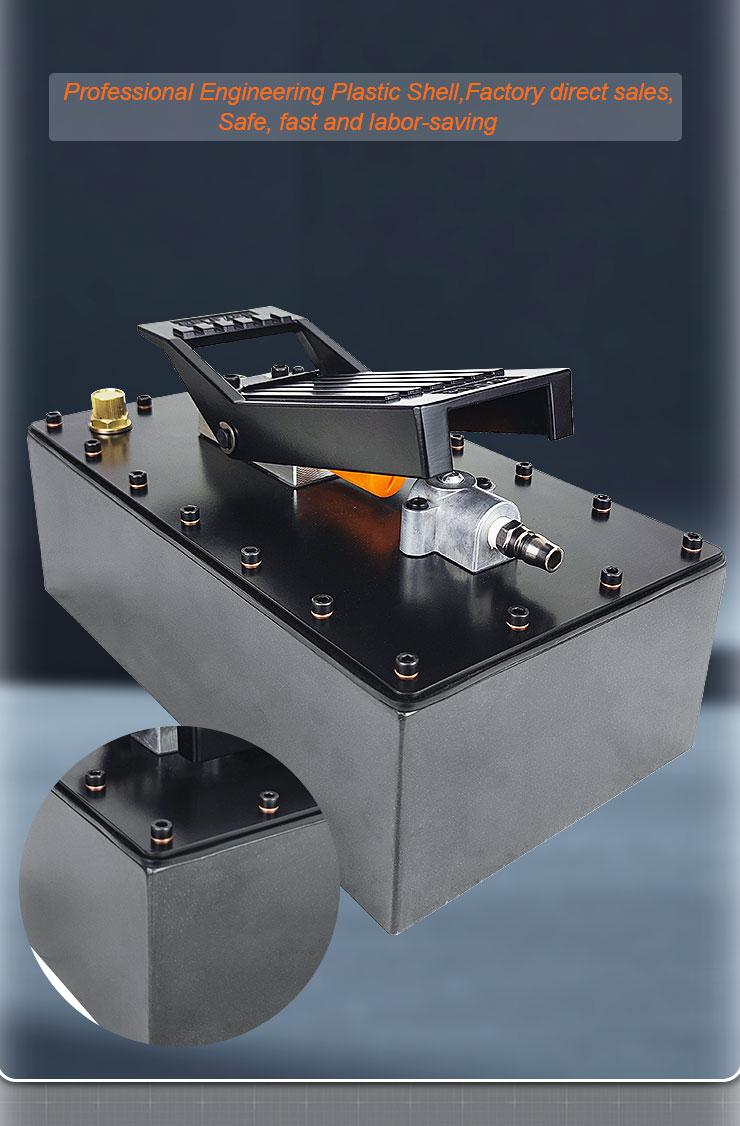

- TNTELLIGENT DISPLAY Professional Engineering Plastic Shell, Factory direct sales Safe, fast and labor-saving

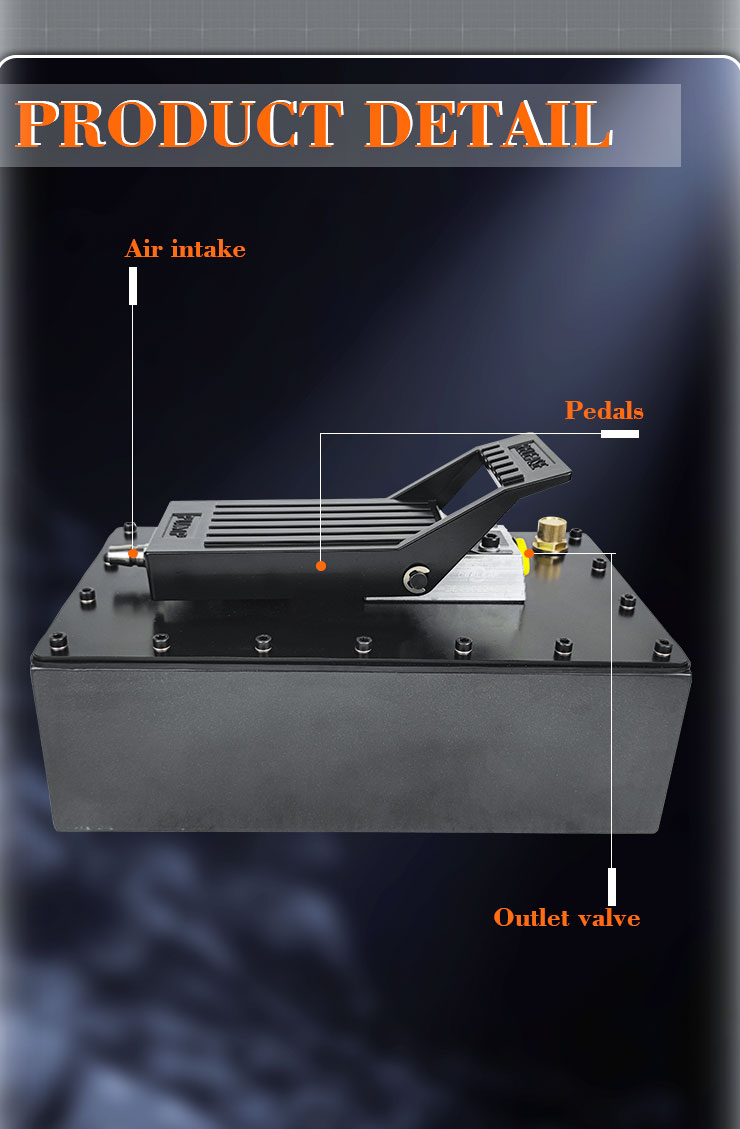

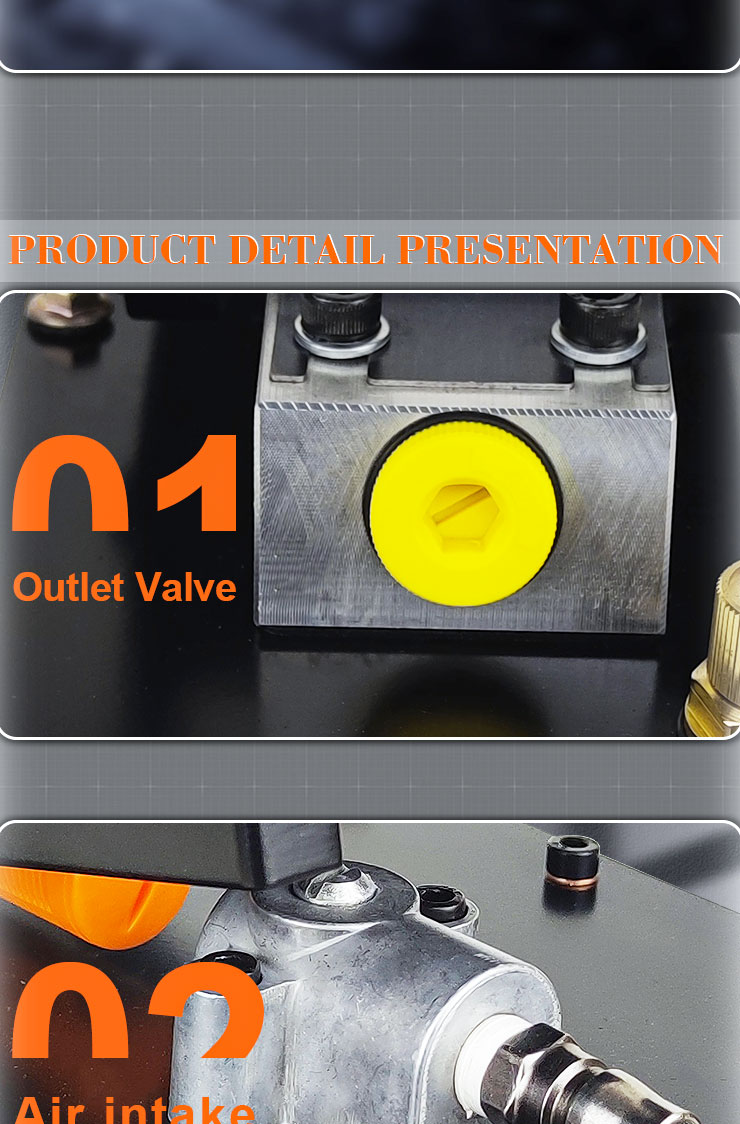

- Outlet Valve
- Air intake

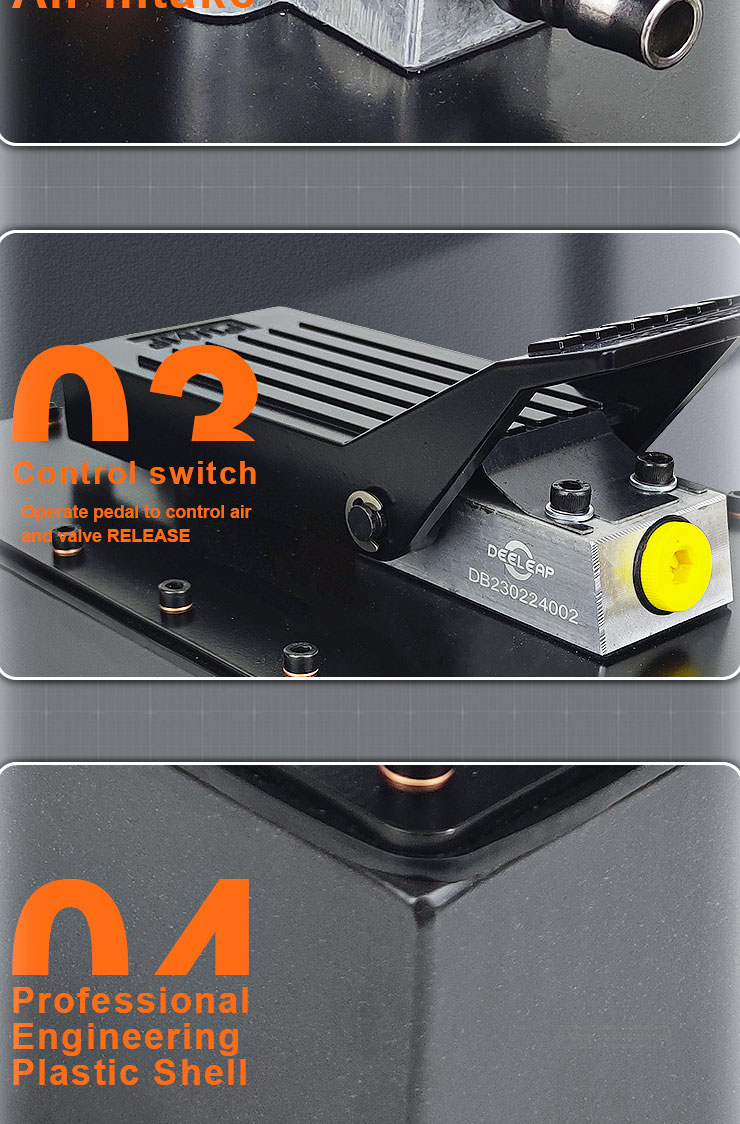

- Control switch operate pedal to control air and valve RELEASE
- Professional Engineering Plastic Shell

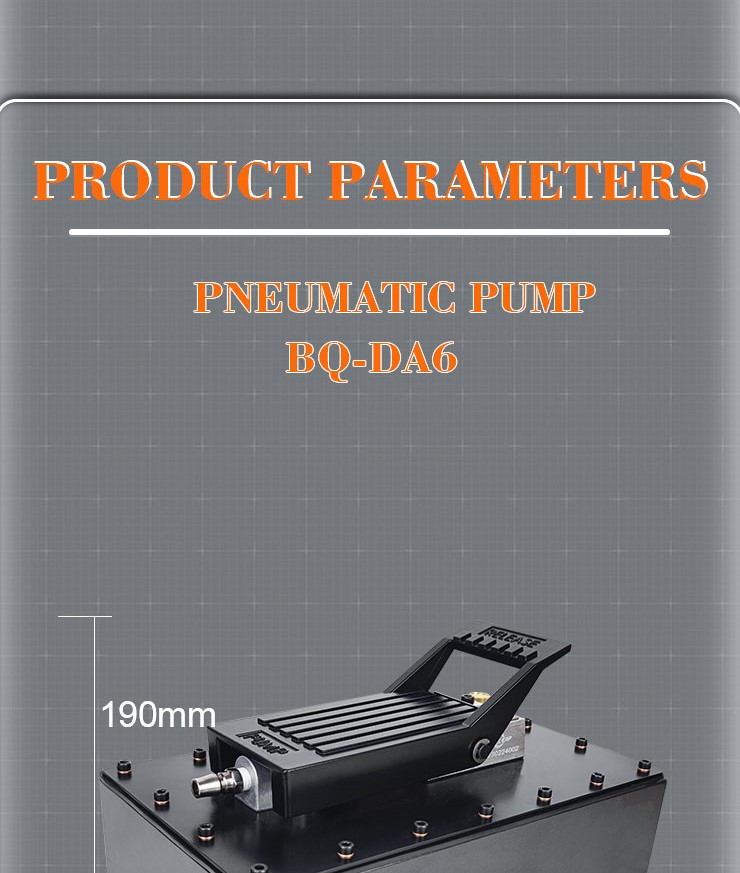

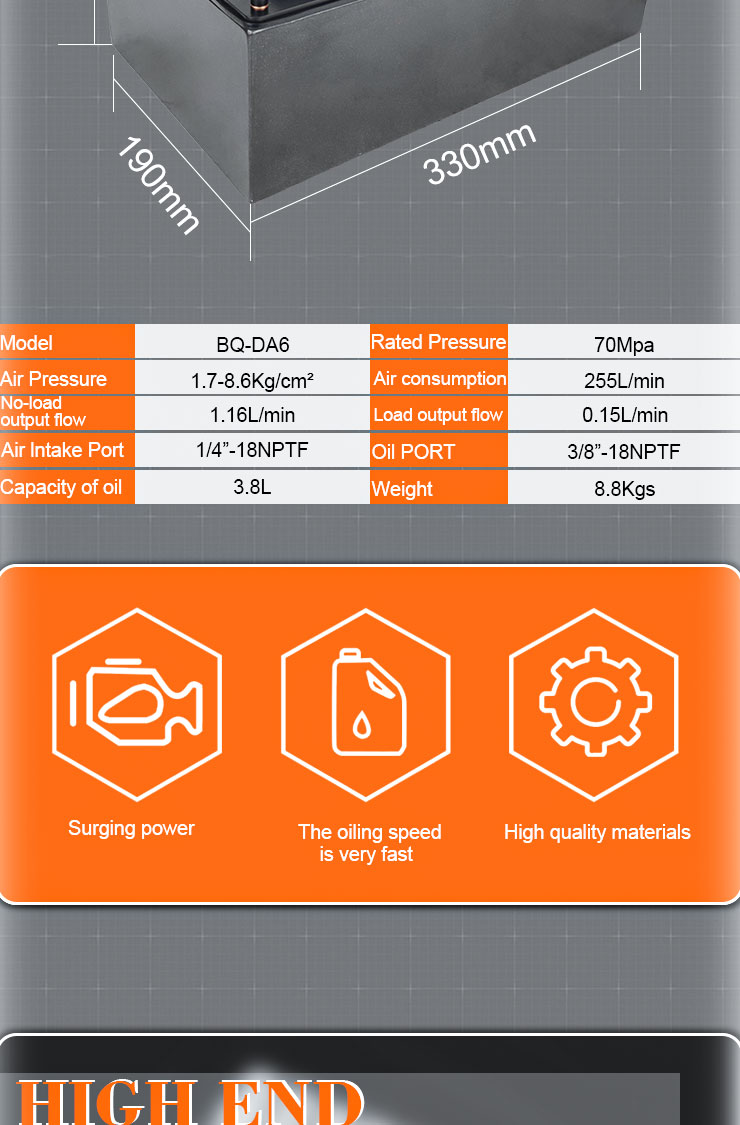

| Model | BQ-DA6 | Rated Pressure | 70Mpa |
| Air Pressure | 1.7-8.6Kg/cm² | Air consumption | 255L/min |
| No-load output flow | 1.16L/min | Load output flow | 0.15L/min |
| Air Intake Port | 1/4”-18NPTF | Oil PORT | 3/8”-18NPTF |
| Capacity of oil | 3.8L | Weight | 8.8Kgs |
